UPS Toshiba 3.6 -22 kVA | Serie 1600 XPi UPS doble conversión

UPS Toshiba 3.6 -22 kVA | Doble conversión

Disponible en una solución de diseño de torre con una pantalla táctil LCD que proporciona un acceso inigualable para la supervisión y el control del UPS. Como un UPS en línea de doble conversión, suministra fuentes ininterrumpidas, limpia la energía monofásica de los sistemas críticos con grandes desviaciones de voltaje de entrada sin recurrir a la batería de respaldo.

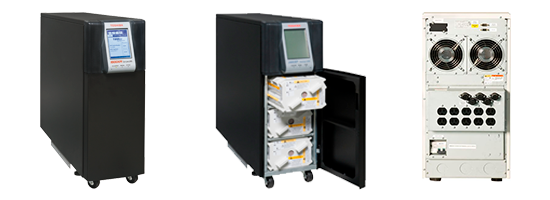

1600-XPi-3.6-a-22-kVA Toshiba

XPi Series | 3.6 - 22 kVA

UPS Toshiba
xpi-series-3.6-22kvA - Toshiba

Solicite una cotización

Características XPi Series | 3.6kVA - 22 kVA

Pantalla LCD digital con pantalla táctil
Transformador de aislamiento interno
Ventana amplia de voltaje de entrada
Ventana de frecuencia de entrada amplia
Factor de potencia de entrada> 0.95
Corrección del factor de poder
Factor de potencia de salida 0.85
Tarjeta de interfaz de red opcional para monitoreo / control remoto
Gabinetes de batería externos opcionales
Dispositivo de monitoreo ambiental opcional

XPi Series | 3.6 - 22 kVA

Características
MODEL
Size 3.6 KVA (3.1 KW) 6 KVA (5.1 KW) 8 KVA (6.8 KW) 10 KVA (8.5 KW) 14 KVA (11.9 KW) 18 KVA (15.3 KW) 22 KVA (18.7 KW)
Topology True Online, Double-Conversion; IGBT Power Factor Corrected Input; Internal Isolation Transformer
Certifications UL 1778, CUL, CE, FCC, RoHS
TOWER
1600XPi US Model H3BG2L036C61T H3BG2L060C61T H3BG2L080C61T H3BG2L100C61T H3BG2L140C61T H3BG2L180C61T H3BG2L220C61T
INPUT
Voltage Single-Phase 208/240 VAC (Three-Wire Input/L-L, G); 230 VAC (Three-Wire Input/L, N, G), +10% -30% (Based on Typical 70% Load)
Capacity (VA) 3.6 KVA 6 KVA 8 KVA 10 KVA 14 KVA 18 KVA 22 KVA
Capacity (W) 3.1 KW 5.1 KW 6.8 KW 8.5 KW 11.9 KW 15.3 KW 18.7 KW
Frequency 45 to 65 Hz (Auto-Sensing)
Power Factor Greater than 0.95 For All Loads
Current THD < 5% (Even for 100% Non-Linear Loads)
AC Input Breaker Rating 30 A 50 A 60 A 63 A 100 A 100 A 125 A
OUTPUT
Voltage Single-Phase 240/208/120 VAC (Four-Wire Output/L-L, N, G)
Voltage Regulation ±3%; ±1% Typical
Frequency 50/60 Hz; ±0.5 Hz/1.0 Hz/1.5 Hz (Factory or Authorized Service Center Selectable)
Voltage THD < 3% for Linear Load; 1% Typical
Wave Form Sinewave
Common Mode Noise < 0.5 V RMS
Load Power Factor 0.85
Efficiency AC/DC/AC Greater than 85%
Rated Output Current @ 240 V 15 A 25 A 33.3 A 41.6 A 58 A 75 A 91.6 A
Maximum Peak Output Current 45 A 75 A 100 A 125 A 174 A 225 A 275 A
Overload Capacity Inverter Mode: 150% for 10 Seconds, 125% for 30 seconds; Bypass Mode: 125% for 10 Minutes, 1000% for One Cycle
Crest Factor 3:1
BATTERY
Battery Type Valve-Regulated Lead Acid; Flame Retardant (9.0 AH)
Backup Time (Fully Charged) 7 Minutes 7 Minutes 7 Minutes 5 Minutes 7 Minutes 5 Minutes 3 Minutes
0.85 Power Factor; Approximately 30% More Runtime for Output Power Factor of 0.7 (Triple Backup Time at ½ Load)
Recharge Time 24 Hours (Full), 12 Hours (90%)
DC Link 144 VDC 216 VDC 288 VDC
PHYSICAL
Interface RS-232 and Remote Contact Standard, RemotEye® 4 Standard for 1600XPi
Demensions (L x W x H) 33” x 10” x 22.1” 34” x 10” x 27.5” 34.9” x 13” x 28.4” 36.1” x 17.5” x 39.1”
Weight 253 lbs. 354 lbs. 466 lbs. 771 lbs.
Shipping Weight 308 lbs. 414 lbs. 533 lbs. 839 lbs.
Enclosure Steel Enclosure; Complies with NEMA 1 and UL Type-1 Standard
Battery Pack Size (L x W x H) 19” x 7.3” x 5” (Battery Pack Part # 51896-FS)
Battery Pack Quantity 2 3 4 8
ENVIRONMENT
Operating Temperature 0° to 40°C (Operating); -20° to +40°C (Storage)
Heat Generation (BTU/Hr) 1,843 3,071 4,095 5,118 7,168 9,213 11,260
Altitude 6,600 Feet (2,000 Meters) Maximum Without Derating
Audible Noise < 60 DBA at 1 Meter
ADDITIONAL FEATURES Output Isolation Transformer, Angled Terminal Blocks for Easy Installation,Casters for Mobility
OPTIONS
SNMP & WEB-Based Monitoring RemotRadar™, Environmental Monitoring Device (EMD) Option
Connectivity Line Cord and Receptacle Option
WARRANTY Three Years on Electronics; Two Years Full Replacement on Battery; See Toshiba Single-Phase Warranty Policy for Full Details
