UPS Toshiba 15 -100 kVA| Serie 4400
UPS Trifásico

UPS Toshiba 15kVA -100 kVA | Trifásico

UPS de doble conversión y transistor bipolar de puerta aislada (IGBT) 4400 cuenta con un rectificador de entrada IGBT controlado digitalmente, una salida inteligente de modulación (PWM), circuito electrónico de última generación para el aislamiento de la batería, y una interfaz de pantalla táctil.

0.9 Factor de potencia
Alta eficiencia
Fácil instalación

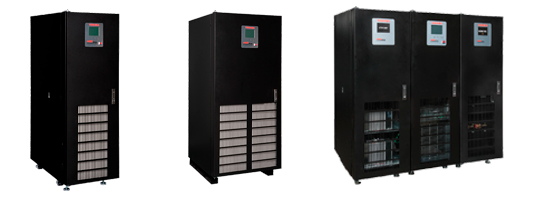

UPS-Toshiba-4400 15 a 100 kVA

Serie 4400 | 15 - 100 kVA

UPS Toshiba
Toshiba UPS-4400

Solicite una cotización

Adicionales y Accesores UPS Toshiba | Trifásico

Banco de Baterías

Los bancos de batería (VRLA) proporcionan una apariencia de instalación uniforme con varios tiempos de funcionamiento.

Gabinetes auxiliares

Los gabinetes auxiliares coincidentes están disponibles para una apariencia de instalación uniforme. Las opciones incluyen un interruptor de bypass (MBS), distribución de energía e interruptores de submisión.
Las opciones incluyen Bypass (MBS), la distribución de energía, Subwounded Breakers, Input Step Down Transformer y Slim MBS.

Monitereo del UPS

Serie 4400 | 15 - 100 kVA

Caracteristicas
MODEL Model Number 4400X3X150XA 4400X3X200XA 4400X3X250XA 4400X3X300XA 4400X3X500XA 4400X3X800XA 4400F3F10KXA
Capacity 15 kVA (13.5 kW) 20 kVA (18 kW) 25 kVA (22.5 kW) 30 kVA (27 kW) 50 kVA (45 kW) 80 kVA (72 kW) 100 kVA (90 kW)
Topology True On-Line, Double-Conversion, All-IGBT Technology
INPUT Voltage (Standard) 208/120V Three-Phase, Four-Wire + Ground Single or Dual Input*
Voltage Range -15% to +10% (Without Using Battery)** -10% to +10%

(Without Using Battery)**

Power Factor >0.98
Current THD <5% at 100% Load
Frequency 50 +/- 5 Hz; 60 +/- 5 Hz
OUTPUT Voltage (Standard) 208/120V Three-Phase, Four-Wire + Ground Output***
Frequency 50/60 Hz, +0.1% Auto-Sensing Standard. (50/60 Hz Selectable, for use as Frequency Converter)
Voltage Regulation +/-2% at 0-100% Balanced Load
Power Factor 0.9 Lagging
Inverter Overload Capcacity

109% Continuous, 110-124% for 6 Minutes, 125-149% for 90 Seconds, 150% for 30 Seconds;

104% Continuous, 105-125% for

6 Minutes, 125-149% for 60

Seconds, 150% for 30 Seconds

Bypass Overload Capcacity 125% for 10 Minutes, 150% for 2 Minutes, 1000% for 1 Cycle
BATTERY DC Link 288 VDC
Ripple Voltage < 0.5% DC
ENVIRONMENT Temperature Range 32° to 104°F (0° to 40°C)
Relative Humidity 5% to 95% Non-Condensing
Heat Rejection 4556

BTUs/Hour

6074

BTUs/Hour

7395

BTUs/Hour

9111

BTUs/Hour

15,286

BTUs/Hour

24,297

BTUs/Hour

30,372

BTUs/Hour

Full-Load Efficiency 91.0%
25% Load Efficiency 88.0%
Altitude 3300 ft. (1000 m) Maximum Without Derating
Air Filtration Airflow Top-to-Front with Front-Located Filters Included
Audible Noise <65dBA @ 1 m Typical <70dBA @ 1 m Typical
DIMENSIONS Dimensions 20.12 in. (W) x 37.40 in. (D) x 65.06 in. (H) 32.10 in. (W) x 37.20 in. (D) x 73.80 in. (H)
Weight**** 725 lbs. (329 kg) 730 lbs. (331 kg) 750 lbs. (340 kg) 760 lbs. (345 kg) 965 lbs. (438 kg) 1550 lbs. (612 kg) 1650 lbs. (748 kg)
COLOR Powder Coat, DuPont O’Brien Black
MONITORING Touchscreen Operator Interface, UPS Status N/O Dry Contacts, RS232C Interface (Optional RemotEye® 4 Intelligent Monitoring System)
OPTIONS Internal Batteries (15-50kVA), Internal Transformers, Dual-Input Feed, RemotEye® 4 Intelligent Monitoring System, Remote Status Alarm Panel, External Matching & Non-Matching Battery Cabinets, Matching MBS/Transformer/Distribution Cabinets
STANDARDS

UL 1778, CUL, ISO9001, ISO14001:2004, ANSI C62.41 (IEEE 587), NEMA/PET-1993, CE, IBC, & CBC (OSHPD)

UL 1778, CUL, ISO9001, ISO14001:2004, ANSI C62.41 (IEEE 587), NEMA/PET-1993
WARRANTY 3-Year On-Site Warranty; 5-Year Warranty Available; See Toshiba Warranty Policy for Full Details
*Isolation and Auto Transformer Options for Input Voltage Conversion. 15-50kVA Units can support 2 internal transformers. 80kVA Units can support 1 internal transformer. Not available for 100kVA.

**For loads less than 50% of total UPS output capacity, input voltage within -30% to +10% of Standard value is sufficient for operation.

***Auto Transformer Options for Output Voltage Conversion. 15-50kVA Units can support 2 internal transformers.

80kVA Units can support 1 internal transformer. Not available for 100kVA.

****Unit Weight Not Including Internal Battery and Transformers.
